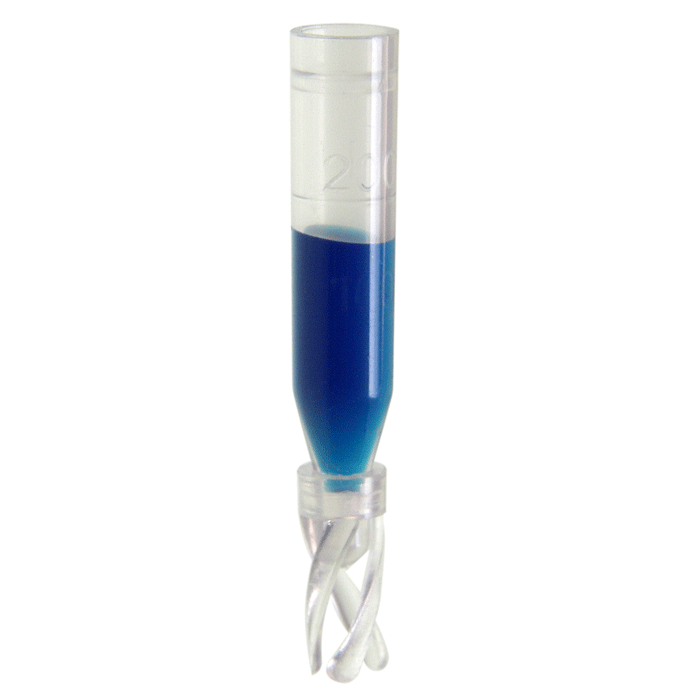

Inserts, Low Volume for Vials, Plastic. Translucent, 300ul fill volume with a conical, precision point and 6x29mm outer dimensions with plastic spring attached. For use in 2ml autosampler vials. LCMS Compatible. AQ Brand. 100/PK.
Additional Info:
A reliable, glass‑free solution for samples that interact with traditional borosilicate inserts.
9502S‑02PP inserts are manufactured from ultra‑pure, virgin medical‑grade polypropylene using a proprietary molding process that introduces no additives. This produces a highly inert plastic insert that is compatible with most LC‑MS solvents and minimizes extractables, making it an excellent alternative to glass for sensitive applications.
These inserts provide a 300 µL total fill capacity with approximately 200 µL usable volume and residual volume as low as ~2.5 µL, depending on autosampler configuration and solvent viscosity. The precision conical tip concentrates sample at the bottom for improved recovery and consistent needle access.
The integrated spring design ensures the insert remains centered within the vial, helping prevent needle misalignment and reducing the risk of insert damage during injections. The translucent material includes fill lines for easier sample preparation and handling.
Key Benefits
300 µL fill volume for low‑volume applications
~200 µL usable volume for efficient sample use
~2.5 µL residual volume for good recovery
Medical‑grade polypropylene construction
Additive‑free molding process reduces extractables
LC‑MS compatible for sensitive workflows
Ideal for samples that interact with glass
Precision conical tip for reproducibility
Spring‑mounted design for centering and stability
Translucent with fill lines for easy handling
Typical Applications
LC‑MS and LC‑MS/MS analysis
Bioanalytical and protein studies
Samples that adsorb to or react with glass
Pharmaceutical and metabolite analysis
General low‑volume sample workflows
Compatibility
Designed for 2 mL (12 × 32 mm) autosampler vials
Compatible with:
9 mm screw top caps
11 mm snap top caps
Performance and Design Notes
Engineered to be extractables‑free in most LC‑MS solvents
Excellent alternative to glass for reactive analytes
Precision tip improves consistency across injections
Fill lines aid in accurate sample preparation
Important Notes
Recommended when glass interaction is a concern
Suitable for sensitive LC‑MS applications
Provides a cost‑effective and durable alternative to glass inserts
